官方文档中指出主题皮肤创建中要上 *.cc 代码中翻找相关信息,对于纯粹的设计人员而言,太囧! 所以,需要一份清晰的手册,指引设计人员快速完成主题皮肤的设计.
所以,有了当前这份:ThemesCreationGuide ~ 主题主题皮肤创建手册!
一个靠谱的文本编辑器是必须的(至少要有行号,语法主题皮肤等等支持,因为 Chrome 对非良构的 manifest.json是零容忍的, 对于M$用户Notepad++ 是个好选择,笔者推荐新兴跨平台编辑器 Sublime Text 2 )如果对 JSON 文本实在没有感觉,可以尝试在线主题皮肤制作工具,比如: http://www.themebeta.com/chrome-theme-creator-online.html
一个靠谱的图像管理器,好工具能帮助你创造好内容,强烈推荐 Photoshop , 同时推荐正版免费软件 Gimp 或是 Paint.
如果你在使用 Photoshop, 就可以下载 Chrome 窗口设计稿 已经将不同元素整理到不同层,方便进行效果调整.
运用一些颜色/模式/设计的创意原则,来控制主题皮肤的整体感观
主题皮肤可定制元素索引

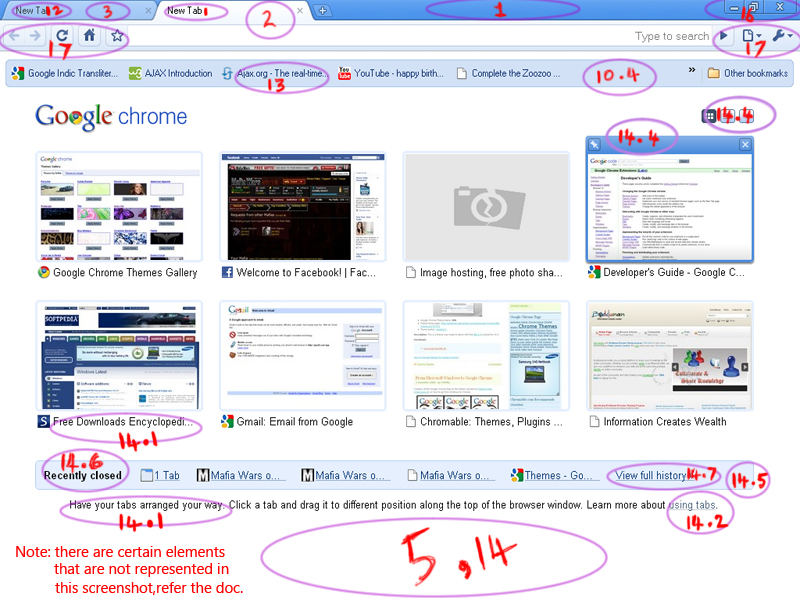

参考以上图片,标出了所有可以进行定制的主题皮肤元素, 我们将使用以上数字逐一说明怎样定制对应UI!
首先,创立以主题皮肤名为目录名的空白目录作工程容器.
然后,创建两样东西: + 将创建的图片(png格式)收集在 images 目录 + 创建最重要的 manifest.json 清单文件, 这是主题皮肤扩展要求必须有的文件!
- 使用普通的文本编辑器即可进行编辑
- 注意,文件名必须全小写
最后,就可以进行打包测试了.
在 Chrome 中有很多东西可以主题皮肤化,详细的参考下文 “主题皮肤元素描述” 一节.
图片元素在 manifest.json 中 images 一节定义
| 标号 | 说明 | manifest.json 参数 | 建议尺寸(宽x高) |
|---|---|---|---|
| 1 | 顶部,Chrome 标签背景区域 | “theme_frame” | ∞ x 80 |
| 1.1 | 区域同上,仅在不活跌时生效 | “theme_frame_inactive” | ~ |
| 1.2 | 区域同上,但在”匿名模式”下窗口激活时生效 | “theme_frame_incognito” | ~ |
| 1.3 | 区域同上,但在”匿名模式”下窗口不活跃时生效 | “theme_frame_incognito_inactive” | ~ |
| 2 | 包含当前标签同工具栏一起的表现 | “theme_toolbar” | ∞ x 120 |
| 3 | 覆盖所有未激活标签区域 | “theme_tab_background” | ∞ x 65 |
| 3.1 | 区域同上,但浏览器在”匿名模式”下 | “theme_tab_background_incognito” | ~ |
| 4 | 标签背景,可以容纳各种事务*(规划中) | “theme_tab_background_v” | ~ |
| 5 | 是主题样式的最大背景 | “theme_ntp_background” | 最小也应是: 800x600 |
| 6 | 在frame 左侧顶层显示的图片 | “theme_frame_overlay” | 110 x 40 |
| 6.1 | 区域同前,仅在窗口不活跃时生效 | “theme_frame_overlay_inactive” | ~ |
| 7 | 标签工具栏按钮背景 | “theme_button_background” | 30 x 30 |
| 8 | 此图片将显示在”theme created by” 一节 | “theme_ntp_attribution” | ~ |
| 9 | 窗口控制按钮背景(关闭,最小,,,) | “theme_window_control_background” | ~ |
| 标号 | 说明 | manifest.json 参数 |
|---|---|---|
| 10 | frame 的颜色，包括较小的外框 | “frame” |
| 10.1 | 相同元素的颜色，但是在非活动模式 | “frame_inactive” |
| 10.2 | 相同元素的颜色，但是在隐身模式 | “frame_incognito” |
| 10.3 | 相同元素的颜色，但是在非活动模式和隐身模式 | “frame_incognito_inactive” |
| 10.4 | 工具栏的背景颜色（按下Ctrl+B可显示） | “toolbar” |
| 11 | 文字颜色，当前选项卡的标题中 | “tab_text” |
| 12 | 文字颜色，所有的非活动选项卡的标题中 | “tab_background_text” |
| 13 | 书签元素文字的颜色 | “bookmark_text” |
| 14 | 主题内的背景颜色 | “ntp_background” |
| 14.1 | “常去网站”区域内出现的所有文字的颜色 | “ntp_text” |
| 14.2 | “常去网站”区域出现的所有链接的颜色 | “ntp_link” |
| 14.3 | 新开选项卡内所有链接的下划线的颜色 | “ntp_link_underline” |
| 14.4 | 当鼠标划过时常去网站 frame 的颜色 | “ntp_header” |
| 14.5 | “最近关闭”区域的背景颜色和快速链接的 frame颜色 | “ntp_section” |
| 14.6 | section 内的文字颜色 | “ntp_section_text” |
| 14.7 | section 区域内的链接颜色 | “ntp_section_link” |
| 14.8 | section 区域内链接下划线的颜色 | “ntp_section_link_underline” |
| 15 | 未确定 - 窗口控制按钮的颜色（关闭、最大化等等） | “control_background” |
| 16 | 工具栏所有按钮的背景颜色 | “button_background” |
{
"version": "1",
"manifest_version": 2,
"name": "轻简生活",
"theme": {
"images": {
"theme_frame": "i/theme_frame.png",
"theme_popupframe": "i/theme_popupframe_default.png",
"theme_frame_inactive": "i/theme_frame.png",
"theme_inactive_tab_left": "i/theme_inactive_tab_left.png",
"theme_inactive_tab_right": "i/theme_inactive_tab_right.png",
"theme_inactive_tab_center": "i/theme_inactive_tab_center.png",
"theme_active_tab_left": "i/theme_active_tab_left.png",
"theme_active_tab_right": "i/theme_active_tab_right.png",
"theme_active_tab_center": "i/theme_active_tab_center.png",
"newtab_btn_n": "i/newtab_btn_n.png",
"newtab_btn_h": "i/newtab_btn_h.png",
"newtab_btn_p": "i/newtab_btn_p.png",
"closetab_btn_n": "i/closetab_btn_n.png",
"closetab_btn_h": "i/closetab_btn_h.png",
"closetab_btn_p": "i/closetab_btn_p.png",
"tab_separator": "i/tab_separator.png",
"typical_frame": "i/typical_frame.png",
"typical_frame_inactive": "i/typical_frame_inactive.png",
"theme_menu_title": "i/menu_title_bkg.png",
"theme_menu_item_highlight": "i/menu_item_highlight.png",
"theme_menu_item_check_round": "i/menu_item_check_round.png",
"theme_menu_item_check_tick": "i/menu_item_check_tick.png",
"theme_menu_item_check_tick_select": "i/menu_item_check_tick_highlight.png",
"theme_menu_title_login_button_h": "i/menu_title_login_button_h.png",
"theme_menu_title_login_button_n": "i/menu_title_login_button_n.png",
"theme_menu_title_login_button_p": "i/menu_title_login_button_p.png",
"theme_menu_title_logo": "i/menu_title_logo.png",
"theme_menu_title_tab_button_cloud_h": "i/menu_title_tab_button_cloud_h.png",
"theme_menu_title_tab_button_cloud_n": "i/menu_title_tab_button_cloud_n.png",
"theme_menu_title_tab_button_cloud_p": "i/menu_title_tab_button_cloud_p.png",
"theme_menu_title_tab_button_info_h": "i/menu_title_tab_button_info_h.png",
"theme_menu_title_tab_button_info_n": "i/menu_title_tab_button_info_n.png",
"theme_menu_title_tab_button_info_p": "i/menu_title_tab_button_info_p.png",
"theme_menu_title_tab_button_main_h": "i/menu_title_tab_button_main_h.png",
"theme_menu_title_tab_button_main_n": "i/menu_title_tab_button_main_n.png",
"theme_menu_title_tab_button_main_p": "i/menu_title_tab_button_main_p.png",
"theme_menu_title_tab_splite": "i/menu_title_tab_splite.png",
"theme_menu_title_user_name_marker": "i/menu_title_user_name_marker.png",
"theme_menu_title_user_name_hover": "i/menu_title_user_name_hover.png",
"theme_menu_cloud_item_bookmark": "i/menu_cloud_item_bookmark.png",
"theme_menu_cloud_item_sync_loading": "i/menu_cloud_item_sync_loading.png",
"theme_location_bar_back_d": "i/location_bar_back_d.png",
"theme_location_bar_back_h": "i/location_bar_back_h.png",
"theme_location_bar_back_n": "i/location_bar_back_n.png",
"theme_location_bar_back_p": "i/location_bar_back_p.png",
"theme_location_bar_border_focus": "i/location_bar_border_focus.png",
"theme_location_bar_border_only_focus": "i/location_bar_border_only_focus.png",
"theme_location_bar_dropdown_button_h": "i/location_bar_dropdown_button_h.png",
"theme_location_bar_dropdown_button_n": "i/location_bar_dropdown_button_n.png",
"theme_location_bar_dropdown_button_p": "i/location_bar_dropdown_button_p.png",
"theme_location_bar_forward_d": "i/location_bar_forward_d.png",
"theme_location_bar_forward_h": "i/location_bar_forward_h.png",
"theme_location_bar_forward_n": "i/location_bar_forward_n.png",
"theme_location_bar_forward_p": "i/location_bar_forward_p.png",
"theme_location_bar_forward_withpay_h": "i/location_bar_forward_withpay_h.png",
"theme_location_bar_forward_withpay_n": "i/location_bar_forward_withpay_n.png",
"theme_location_bar_forward_withpay_p": "i/location_bar_forward_withpay_p.png",
"theme_location_bar_goto_h": "i/location_bar_goto_h.png",
"theme_location_bar_goto_n": "i/location_bar_goto_n.png",
"theme_location_bar_goto_p": "i/location_bar_goto_p.png",
"theme_location_bar_reload_h": "i/location_bar_reload_h.png",
"theme_location_bar_reload_n": "i/location_bar_reload_n.png",
"theme_location_bar_reload_p": "i/location_bar_reload_p.png",
"theme_location_bar_result_view_closebtn_h": "i/location_bar_result_view_closebtn_h.png",
"theme_location_bar_result_view_closebtn_n": "i/location_bar_result_view_closebtn_n.png",
"theme_location_bar_result_view_closebtn_selected_h": "i/location_bar_result_view_closebtn_selected_h.png",
"theme_location_bar_result_view_closebtn_selected_n": "i/location_bar_result_view_closebtn_selected_n.png",
"theme_location_bar_result_view_h_background": "i/location_bar_result_view_h_background.png",
"theme_location_bar_result_view_s_background": "i/location_bar_result_view_s_background.png",
"theme_location_bar_safebrowsing_warning": "i/location_bar_safebrowsing_warning.png",
"theme_location_bar_star": "i/location_bar_star.png",
"theme_location_bar_star_lit": "i/location_bar_star_lit.png",
"theme_location_bar_stop_d": "i/location_bar_stop_d.png",
"theme_location_bar_stop_h": "i/location_bar_stop_h.png",
"theme_location_bar_stop_n": "i/location_bar_stop_n.png",
"theme_location_bar_stop_p": "i/location_bar_stop_p.png",
"theme_searchbar_border_focus": "i/searchbar_border_focus.png",
"theme_searchbar_engs_icon_h": "i/searchbar_engs_icon_h.png",
"theme_searchbar_engs_icon_n": "i/searchbar_engs_icon_n.png",
"theme_searchbar_engs_icon_p": "i/searchbar_engs_icon_p.png",
"theme_searchbar_icon_h": "i/searchbar_icon_h.png",
"theme_searchbar_icon_n": "i/searchbar_icon_n.png",
"theme_searchbar_icon_p": "i/searchbar_icon_p.png",
"theme_searchbar_engs_is_default": "i/searchbar_engs_is_default.png",
"theme_tabstripbar_left_background": "i/theme_tabstripbar_left_background.png",
"theme_tabstripbar_right_background": "i/theme_tabstripbar_right_background.png",
"progress_button_background": "i/progress_button_background.png",
"ks_download": "i/download.png",
"ks_download_p": "i/download_p.png",
"ks_download_h": "i/download_h.png",
"ks_downloading": "i/downloading.png",
"ks_downloading_p": "i/downloading_p.png",
"ks_downliading_h": "i/downloading_h.png",
"progress_bottom_img": "i/progress_bottom_img.png",
"progress_top_img": "i/progress_top_img.png",
"progress_button_mask": "i/progress_button_mask.png",
"safety_n": "i/safety_n.png",
"safety_h": "i/safety_h.png",
"safety_p": "i/safety_p.png",
"safe_login_manager_btn_n": "i/safe_login_manager_btn_n.png",
"safe_login_manager_btn_h": "i/safe_login_manager_btn_h.png",
"safe_login_manager_btn_p": "i/safe_login_manager_btn_p.png",
"fav_button_n": "i/fav_button_n.png",
"fav_button_h": "i/fav_button_h.png",
"fav_button_p": "i/fav_button_p.png",
"skin_btn_n": "i/skin_button_n.png",
"skin_btn_h": "i/skin_button_h.png",
"skin_btn_p": "i/skin_button_p.png",
"multi_tab_preview_btn_n" : "i/multi_tab_preview_btn_n.png",
"multi_tab_preview_btn_h" : "i/multi_tab_preview_btn_h.png",
"multi_tab_preview_btn_p" : "i/multi_tab_preview_btn_p.png",
"min_btn_n": "i/min_button_n.png",
"min_btn_h": "i/min_button_h.png",
"min_btn_p": "i/min_button_p.png",
"max_btn_n": "i/max_button_n.png",
"max_btn_h": "i/max_button_h.png",
"max_btn_p": "i/max_button_p.png",
"restore_btn_n": "i/restore_button_n.png",
"restore_btn_h": "i/restore_button_h.png",
"restore_btn_p": "i/restore_button_p.png",
"close_btn_n": "i/close_button_n.png",
"close_btn_h": "i/close_button_h.png",
"close_btn_p": "i/close_button_p.png",
"home_btn_n": "i/homepage_n.png",
"home_btn_h": "i/homepage_h.png",
"home_btn_p": "i/homepage_p.png",
"undo_btn_n": "i/undo_button_n.png",
"undo_btn_d": "i/undo_button_d.png",
"undo_btn_p": "i/undo_button_p.png",
"undo_btn_h": "i/undo_button_h.png",
"icon_button_mask": "i/account_mask.png",
"account_btn_icon": "i/account_icon.png",
"account_failed_btn_icon": "i/account_failed_icon.png",
"cloud_btn_icon": "i/cloud_icon.png",
"cloud_failed_btn_icon": "i/cloud_failed_icon.png",
"message_btn_icon": "i/message_icon.png",
"account_rotate": "i/account_rotate.png",
"account_breath": "i/account_breath.png",
"icon_button_edge_n": "i/account_edge_n.png",
"icon_button_edge_h": "i/account_edge_h.png",
"icon_button_edge_p": "i/account_edge_h.png",
"dialog_bg": "i/dialog_bg.png",
"throbber_waiting": "i/loading.png",
"bookmark_bar_folder": "i/bookmark_bar_folder.png",
"bookmark_btn_bk_h": "i/bookmark_btn_bk_h.png",
"bookmark_btn_bk_p": "i/bookmark_btn_bk_p.png",
"default_fav_icon": "i/default_fav_icon.png",
"dialog_button_n": "i/dialog_button_n.png",
"dialog_button_h": "i/dialog_button_h.png",
"dialog_button_p": "i/dialog_button_p.png",
"bubble_button_n": "i/bubble_button_n.png",
"bubble_button_h": "i/bubble_button_h.png",
"bubble_button_p": "i/bubble_button_p.png",
"check_n": "i/check_n.png",
"check_h": "i/check_h.png",
"check_p": "i/check_p.png",
"check_u_n": "i/check_u_n.png",
"check_u_h": "i/check_u_h.png",
"check_u_p": "i/check_u_p.png",
"radio_selected_n": "i/radio_selected_n.png",
"radio_selected_h": "i/radio_selected_h.png",
"radio_selected_p": "i/radio_selected_p.png",
"radio_unselect_n": "i/radio_unselect_n.png",
"radio_unselect_h": "i/radio_unselect_h.png",
"radio_unselect_p": "i/radio_unselect_p.png",
"bookmark_bar_bk": "i/bookmark_bar_bk.png",
"newtab_favicon": "i/newtab.png",
"bookmarks_favicon": "i/bookmark.png",
"history_favicon": "i/history.png",
"settings_favicon": "i/setting.png",
"button_shine": "i/button_shine.png",
"user_login_dropdown_button_h": "i/dropdown_button_h.png",
"user_login_dropdown_button_p": "i/dropdown_button_p.png",
"user_login_btn_n": "i/user_login_btn_n.png",
"user_login_btn_h": "i/user_login_btn_h.png",
"user_login_btn_p": "i/user_login_btn_p.png",
"user_qq_login_btn_h": "i/user_qq_login_btn_h.png",
"user_qq_login_btn_p": "i/user_qq_login_btn_p.png",
"user_login_link_bk_n": "i/user_login_link_bk_n.png",
"user_login_link_bk_h": "i/user_login_link_bk_h.png",
"user_login_link_bk_p": "i/user_login_link_bk_p.png",
"safety_abnormal_n": "i/safety_abnormal_n.png",
"safety_abnormal_p": "i/safety_abnormal_p.png",
"safety_abnormal_h": "i/safety_abnormal_h.png"
},
"colors": {
"tab_text": [42, 43, 44],
"tab_background_text": [42, 43, 44],
"color_menu_container_bkg": [248, 248, 248],
"color_menu_item_bkg": [248, 248, 248],
"color_menu_title_user_name": [60, 60, 60],
"color_menu_title_description": [110, 110, 110],
"color_menu_title_text_prompt": [255, 115, 15],
"color_menu_content_prompt": [212, 112, 151],
"typical_frame_color": [205, 205, 212],
"typical_frame_color_inactive": [239, 239, 241],
"color_bookmark_text": [92, 96, 105],
"color_bookmark_hov_text": [255, 255, 255],
"color_bookmark_high_text": [255, 255, 255],
"color_status_text": [130, 130, 130],
"color_status_background": [199, 206, 222],
"bookmark_text": [92, 96, 105],
"bookmark_press_link": [255, 255, 255],
"color_locationbar_resulturl_texthighlight": [252, 162, 85],
"color_user_login_link_text": [75, 102, 119],
"color_button_text_h": [105, 105, 108],
"color_button_text_p": [105, 105, 108]
},
"properties": {
"property_locationbar_forward_alwaysshow": 0,
"bookmark_btn_inset_lr": 5,
"property_frame_bkg_tiled": 1
},
"layouts": {
"layout_main": "i/layout_main"
}
}
}
